The RDHx liquid-cooled backplane is designed to provide rack-level energy-efficient cooling for high heat loads in data centers. The liquid-cooled back door is equipped with a high-efficiency air-water heat exchanger to remove the hot air exhausted from the equipment in the rack. The hot-swap design concept provides maximum uptime and availability and improves efficiency.
The liquid-cooled backplane is specifically designed for high-performance computing (HPC) and supports raising the water supply temperature to achieve low-energy consumption cooling throughout the year under specific ambient temperatures.
Integrated condensate pump
Door opening angle > 90 degrees
Support third - party racks
Dimensions: 600x400/600x2000mm
Built - in leakage detection sensor
Air temperature, air humidity, water temperature, water flow, water pressure sensors
7 - inch touch panel display

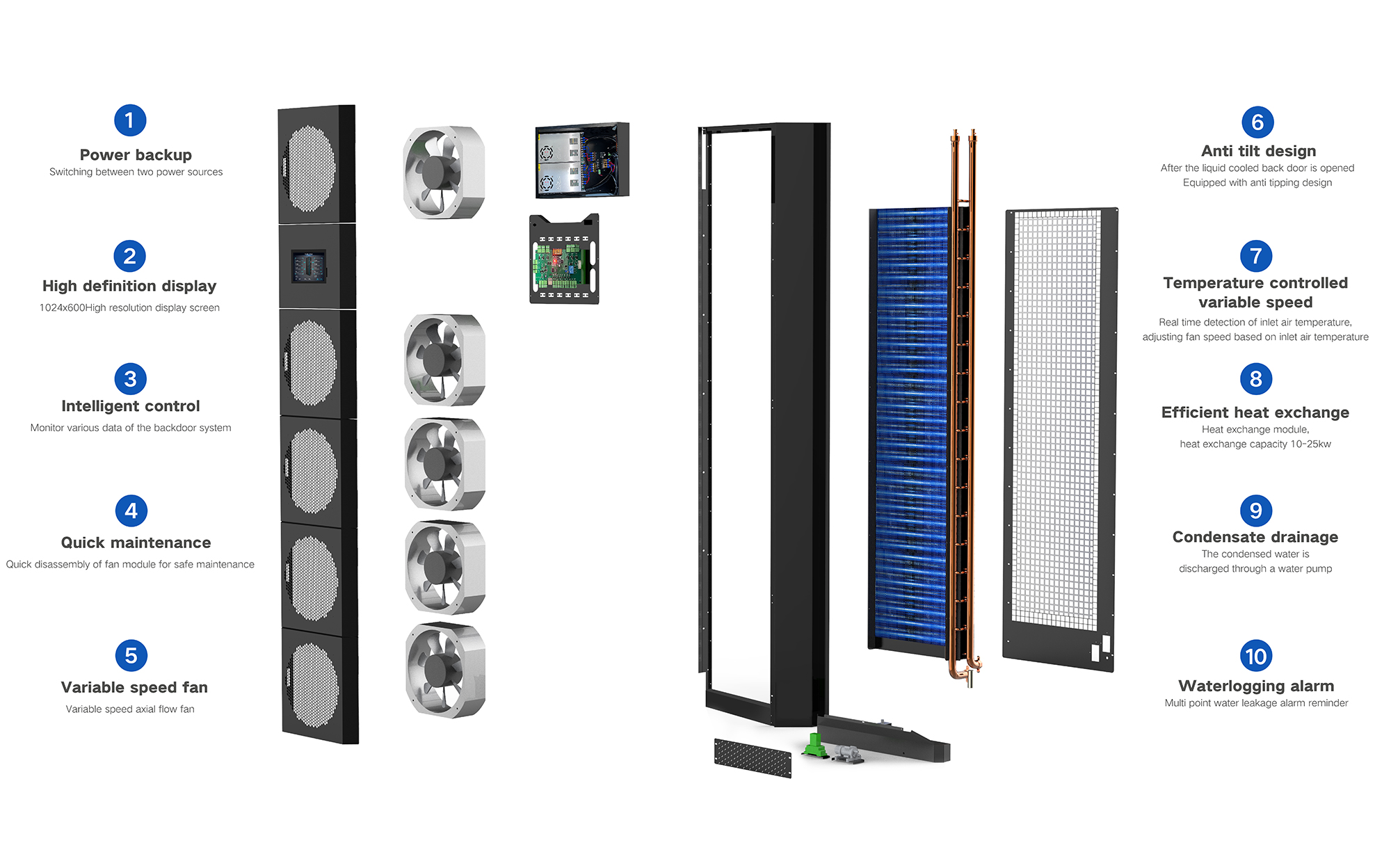

Hot - swappable fan module (active type), no need to open the door
Hot - swappable power module and main controller, no need to open the door
High cooling performance
Maximum uptime and availability
Long - term uptime, low maintenance cost
Advanced control functions
Modular design, high adaptability
Can be combined with cold - plate liquid cooling
Supports rapid deployment and convenient maintenance of data centers
